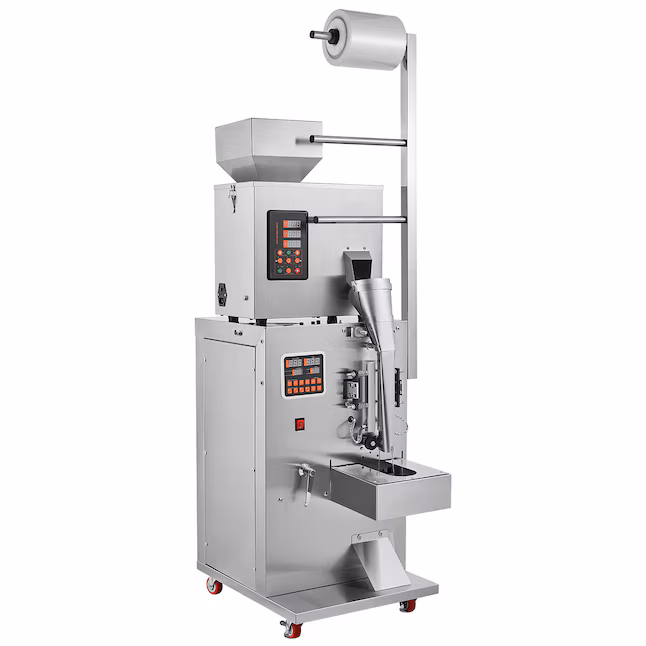

Automatic Pouch Filling Machine in Gujarat

A powder pouch filling machine is an industrial packaging machine used to form, fill and seal pouches by automatic machine, with powdered product like spices, milk powder, flour, detergent, nutritional powder, powder and other powder products. These machines offer more precision, greater speed and improved cleanliness than manual packing.

These are normally employed in food processing, pharmaceutical, chemical, and agro-product industries.

Key Features :

Powder pouch filling machines may vary by model (automatic, semi-automatic, single head, multi-head, etc.), but generally include the following features:

🔹 Filling & Packaging

Auger or Volumetric Filler: Precise dosing mechanism for accurate weight control of powders.
Form-Fill-Seal System (FFS): Automatically forms pouches from a film roll, fills with powder, and seals.
Compatibility with Various Pouch Types: Center seal, three-side seal, four-side seal, zipper pouches.

🔹 Control & Operation

PLC + HMI Touchscreen Control: For recipe settings, speed, and weight adjustments.
Servo-Driven Auger Screw: High precision and minimal product wastage.
Sensors & Motor Drives: Ensure stable pouch positioning and consistent filling.

🔹 Quality & Hygiene

Stainless Steel Construction: SS304/SS316 contact parts for food-grade hygiene and corrosion resistance.
Dust Control & Anti-Drip: Reduces spillage and keeps the work area clean.
Batch/Date Coding, Nitrogen Flushing (Optional): For product traceability and extended shelf life.

🔹 Flexibility & Integration

Adjustable Filling Ranges: From a few grams up to several kilograms depending on model.
Expandable with Conveyors, Sealers, Cappers: For full production line automation.

Specifications

Parameter	Details
Filling Range	~10 g to 5 kg (model-dependent)
Filling Mechanism	Servo auger filler
Output Speed	~8–60 pouches/min (varies by product weight & machine)
Packing Material	Heat-sealable laminated films, LDPE, multi-layer films
Pouch Type	Centre seal / 3-side / 4-side / zipper
Construction Material	SS304 / SS316 (contact parts)
Control System	PLC + HMI touchscreen
Power Requirement	Single/Three Phase (commonly 220/380–440 V)
Accuracy	±1% typical (product dependent)
Auxiliary Features	Dust extraction, nitrogen flushing, batch coding (optional)
