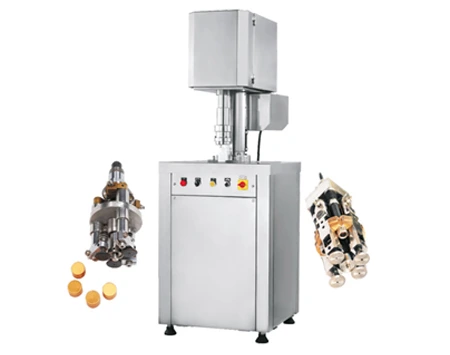

Single Head Capping Machine

Single Head Capping Machine

Single Head Capping Machine Manufacturers

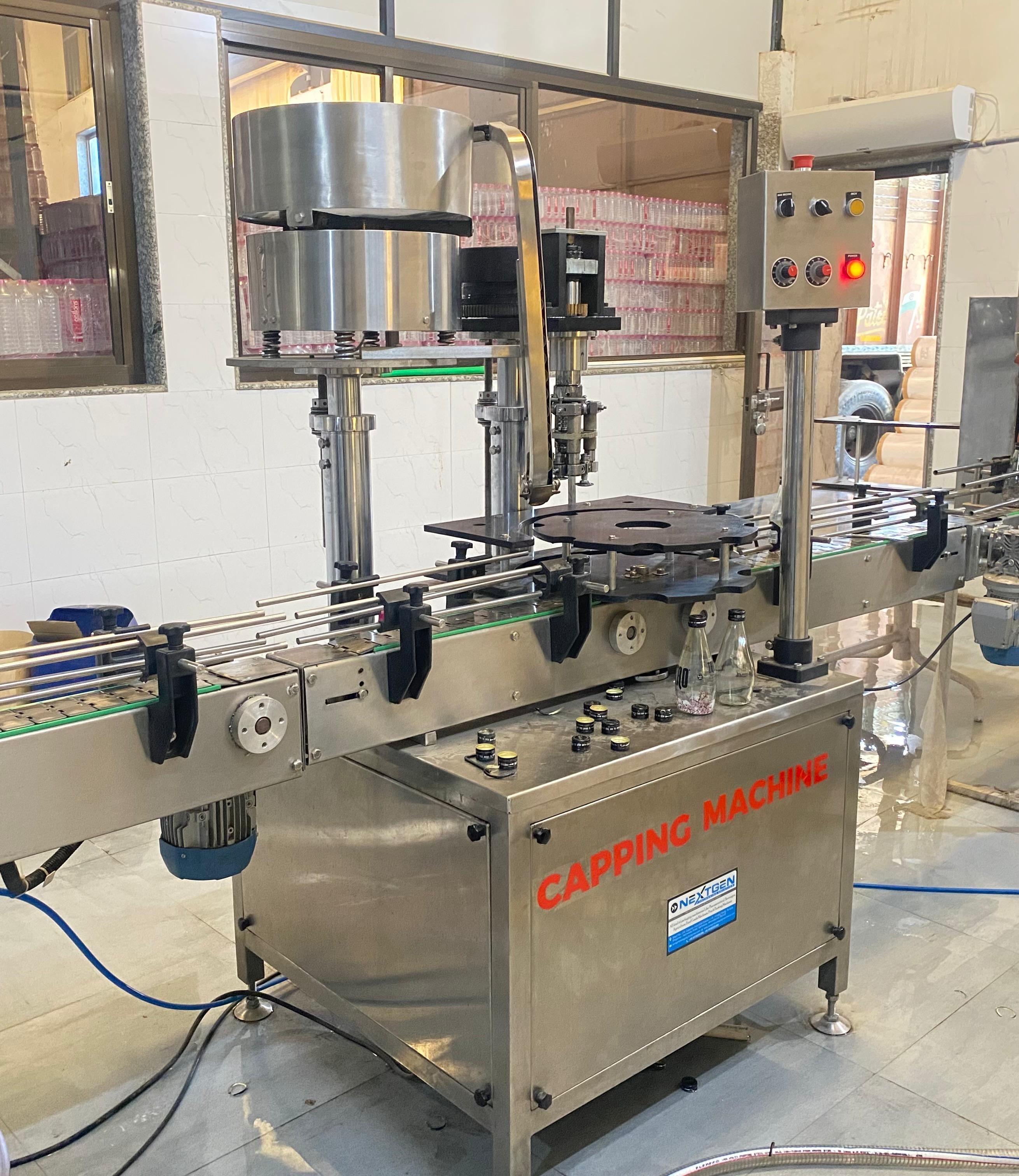

A single head capping machine is a small and dependable machine for placing and tightening caps on containers in low to medium speed production lines. Provides accurate torque control, ensuring proper sealing without causing any damage to caps or containers, and is compatible with various bottle sizes and cap types.

A Single Head Capping Machine is widely applied to pharmaceutical, cosmetic, food, chemical production industry, which not only improves the packaging efficiency but also ensures that the product quality is consistent, and is easy to operate and maintain.

Servo auger type format filling machine

Specifications :

No of Head : 1
Output : 20 to 60 BPM
Height of conveyor : 860 to 910 mm
Direction : Left to Right
Change Parts Require : (A) Container : star wheel, Centre guide, feed worm (B)Cap Dia : Delivery chute, bowl
Cap type : Screw
Diameter : 22mm to 56mm
Height : 15 to 18.3mm
Power Requirement : 230V single phase 50Hz

Features :

  • • No container, no cap arrangement
  • • Single motor synchronizes conveyor, star wheel & platform turret
  • • Adjustable height of conveyor belt
  • • All contact parts are made out if stainless steel
  • • Torque Adjustable
  • • Low noise level, low power consumption
