Specifications

Output/min	Up to 100 to 300
Container size	dia 28mm-125mm, 320mm height max
Length of sleeve	30mm – 250mm
Thickness of sleeve	0.035mm – 0.75mm
Label material	PVC:, PET,OPS, PLA
Sleeve roll inner	dia 101.6mm
Sleeve outer	dia 400mm
Height of conveyor	860-910mm
Electrical rating	1.5kw- 2kw,380V ac, 50/60HZ,3 Phase
Change part	A. center pillar B. worm C. cutter

Suitable for various shape of glass, plastic, PET, tin, corrugated container
Fully synchronized with all mechanism
Totally PLC based machine
No bottle no sleeve
Fully automatic machine with 300 BPM
Rigid Structure constructed S.S. and anodizing aluminum alloy.
Statics charges elimination system for accurate sleeve placements
No tools required for changeovers from one size bottle to another
Servo based high speed with accurate length sleeve feeding and rotary sleeve cutter systems
Online speed can vary 8: fully synchronized with all mechanism.

This machine design to insert sleeve with desired position on various size and shape of containers. This unique model is suitable for variety of industries with an opportunity to reduce labour and increase manufacturing rates
The machine having integrating functions of delivering & classifying containers, accurate cutting of label sleeving and proper positioning of sleeve on bottle.
Easy to change for Different Pouch Size and filling volume.
This machine is constructed on sturdy welded steel frame completely enclose in S.S.Sheet doors and aluminium alloy.

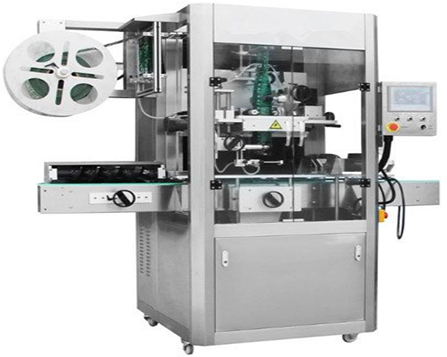

The unit consisting of sleeve roll loader-carrier assembly , center pillar, bottle positioning mechanism, cutter mechanism, optical scanner, controlling assembly and brush assembly etc.
