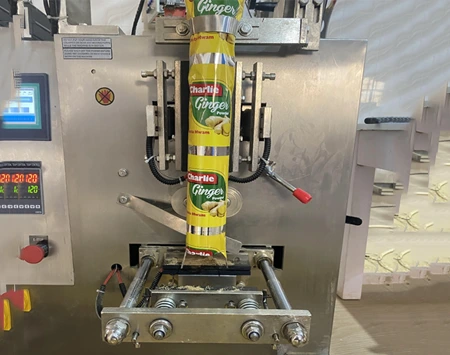

Servo Auger Type Collar Filling Machine

Application:

Suitable For Potato Chips, Namkeen, Granules, Pulses, Seeds, Detergent Powder, Suji, Tea, Sugar, Whole spices, Dry Fruits, Peanuts, Jelly, Hardware Items, Chocolate.

Specification :

Capacity	: 20gm - 200gm, 250gm - 1Kg (Different types of machine)
Sealing Type	: Center Sealing / Pillow type sealing
Film Size	: 150 - 450mm W, 50 - 350mm L
Vertical sealing	: Pneumatic type
Horizontal sealing	: Pneumatic type
Speed	: 40-60 pouch per minute. [Depend on product density and filling]
Power	: 240 V, 50 Hz, Single Phase.
Packing Material	: 2 ply/3 ply
Vertical Sealing	: Pneumatic type
Horizontal Sealing	: Pneumatic type
Pulling type	: Belt type
Controlling type	: PLC Programmed based
Probability of Inaccuracy	: +/- 1% to 2%
Pouch Size	: Will be informed by customer
Net Weight	: 1000 Kgs. (Approx )
Dimension	: 1860x 1300x 2850 mm ( L x W x H, Approx )
Body	: 80 x 80 Massive structure
Compressor Air Required	: 5 CFM@5 BAR

Features:

• Controlled by most advanced PLC from XINJE with touch screen operating panel.
• No product - No bags feature ensures no wastages of bags.
• High levels of safety devices used in control panel
• Recipe functions for easy job changeover.
• Discharge / take off conveyor system with motor
• Compressor arranged by you.
• Batch coding device unit. (Optional)
