Packing Materials Load Cell Collar Type Pouch Filling Machine

A Load Cell Collar Type Pouch Filling Machine is an extremely efficient and very accurate based packaging solution that can be used to fill liquids and semi-liquid items with precision into roll-fed or pre-formed pouches. With the advanced load cell technology, the machine is guaranteed of accurate weight measurement, and uniform filling to minimize the wastage of its products as well as uniform quality of its packaging. It has a design that has an easy pouch making, filling and sealing process

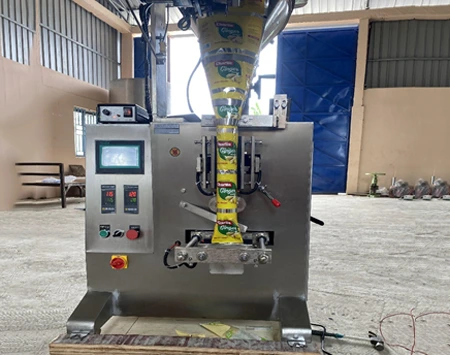

Load cell collar type pouch filling machine

in continuous process which makes it suitable when it comes to products containing milk, oil, juices, sauces, and chemicals.This machine is constructed with robust stainless-steel construction and easy to use PLC controls, so it is very fast, sturdy and easily maintained thus fitting even food, beverage, pharmaceutical and chemical industries in need of reliable and automated packaging.

Specification :

Capacity : 1200 Pouch/hour
Packing speed : 30-50 pouch per min
Automation grade : automatic
Voltage : 220V
Vertical sealing : Pneumatic type
Horizontal sealing : Pneumatic type
Packing application : All kind of gradule and powder product
Filling type : 2 Head Weigh filler
Weight control : By load cell
Pouch style : Central seal
Pouch capacity : 50GM-1000 GM
Power consumption : 4 kw
Controlled Through : PLC drive
Net Weight : 1000 Kgs. (Approx )
Dimension : 1860x 1300x 2850 mm ( L x W x H, Approx )
Maximum width : 100mm-450mm
Maximum Height : 100mm-200mm
Packing Range : 50g-1000grm
Batch cutting : Yes
Sealing heating system : Yes
Feeling head : 2 head
Compressed air consumption : 6CFM @ 6 BAR
Accuracy : +/- 98 %
Pouch counter : Yes
Temperature controller : Yes
Cladding : SS
Number of track : 1

Features:

  • • Controlled by most advanced PLC with touch screen operating panel.
  • • Batch coding device unit.
  • • Compressor arranged by you.
  • • Discharge/ take off conveyor system with load cell controlled by vibrator.
  • • Recipe functions for easy job changeover.
  • • High level of safety device used in control panel
  • • No product –no bags feature ensure no wastages of bags.
