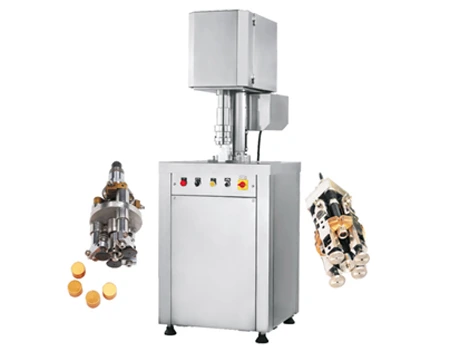

Single Four Head Capping Machine

Single Four Head Capping Machine Manufacturers

A single four head capping machine is designed to efficiently seal containers using four capping heads within a single compact system, making it ideal for medium to high-speed production lines. This machine ensures uniform torque application and precise cap placement, reducing the risk of leakage or damaged caps across bottles of various shapes and sizes.

Widely used in industries such as pharmaceuticals, food and beverages, cosmetics, and chemicals, a single four head capping machine improves productivity, maintains consistent sealing quality, and integrates smoothly with automated filling and labeling lines.

servo liquid filling machine manufacturer

Specifications :

Number of Head : : 1/4/8
Output : 20 to 60 BPM
Height of conveyor : 860 to 910 mm
Direction :Left to Right
Change Parts Require :(A) Container : star wheel, Centre guide, feed worm
(B)Cap Dia : Delivery chute, bowl
Cap type : Screw
Diameter :22mm to 56mm
Height : 15 to 18.3mm
Power Requirement :230V single phase 50Hz

Features :

  • No container, no cap arrangement
  • Single motor synchronizes conveyor, star wheel & platform turret
  • Adjustable height of conveyor belt
  • All contact parts are made out if stainless steel
  • Torque Adjustable
  • Low noise level, low power consumption
