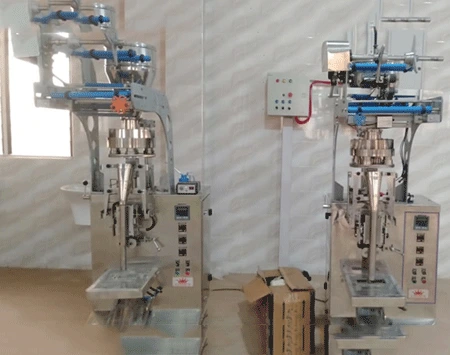

Load cell forma type pouch filling machine

Features :

• Controlled by most advanced PLC with touch screen operating panel.
• Batch coding device unit.
• Compressor arranged by you.
• Discharge/ take off conveyor system with load cell controlled by vibrator.
• Recipe functions for easy job changeover.
• High level of safety device used in control panel
• No product –no bags feature ensure no wastages of bags.

Specification :

Capacity	: 1000 Pouch/hour
Packing speed	: 25-35 pouch per min
Automation grade	: automatic
Voltage	: 220V
Vertical sealing	: Pneumatic type
Horizontal sealing	: Pneumatic type
Packing application	: All kind of gradule and powder product
Filling type	: 2 Head Weigh filler
Weight control	: By load cell
Pouch style	: Central seal
Pouch capacity	: 50GM-1000 GM
Power consumption	: 3 kw
Controlled Through	: PLC drive

Machine dimension	: 890 x 760 x 1930 mm ( L x W x H, Approx )
Maximum width	: 100mm-450mm
Maximum Height	: 100mm-200mm
Packing Range	: 50g-1000grm
Batch cutting	: Yes
Sealing heating system	: Yes
Feeling head	: 2 head
Compressed air consumption	: 6CFM @ 6 BAR
Accuracy	: +/- 98 %
Pouch counter	: Yes
Temperature controller	: Yes
Cladding	: SS
Number of track	: 1
Machine weight	: 550 KG

Our provided product packing machine are checked on varied quantity attributes Like light weight and high efficiency moreover, these packing machines are available in varied design sizes and specifications.

Packing Range : 50 gram- 1000 grams (depends upon the nature of product) Usages/granules powder, rice etc.
