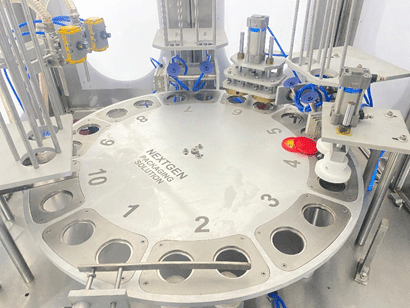

This machine id designed for packing the plastic cup with min dia20mm, max dia 95 mm. any one size working machine. Filling and sealing done by machine we have put glass manually. Also aluminum foil lids used in this machine must be pre-catted lids.
| No of stations | : 10 |
| Assembly type | : Geneva |
| Main motor | : 2 HP |
| Filling | : Servo type |
| Liquid Filling Range | : 50-1000 ml |
| Filling Control | : Via Sensor (No Cup no filling) |
| Aluminum foil control | : Via Sensor (No Cup no foil) |
| Cap dropping | : Via Sensor (No cup no Cap) |
| Cap dropping | : Automatic |
| Cap sealing | : Automatic |
| Heat power | : 230V-700 W |
| Air Compressor | : Require |
| Air consumption | : 5,7,10 CFM 4 TO 6 kg |
| Capacity | : 2400 cups/hour |
| Power Consumption | : 3-Phase 415V AC |
| Material | : Stainless Steel |
| Electric Load | : 5 kw |
| Finishing | : Mate |
| Programmable Logic Controller ( PLC ) | : Yes |
| Digital Temperature Controller | : Select digital |
| Suitable to Pack | : 50ml - 1000ml |
| Drive and operation | : Induction gear box or Cam follower |
| Main Motor | : 2 HP |
| Machine Type | : Automatic |
| Air Pressure | : 6kg |
| Voltage | : 440 v |
| Automation | : Automated advance programed |
| Country of Origin | : Made in India |
